CTK611-M series large CNC horizontal lathe-CTK611 series CNC large lathe-Novatech CNC Heavy Duty Machine Tool(Shandong)Co.，Ltd-Novatech

Product Features:

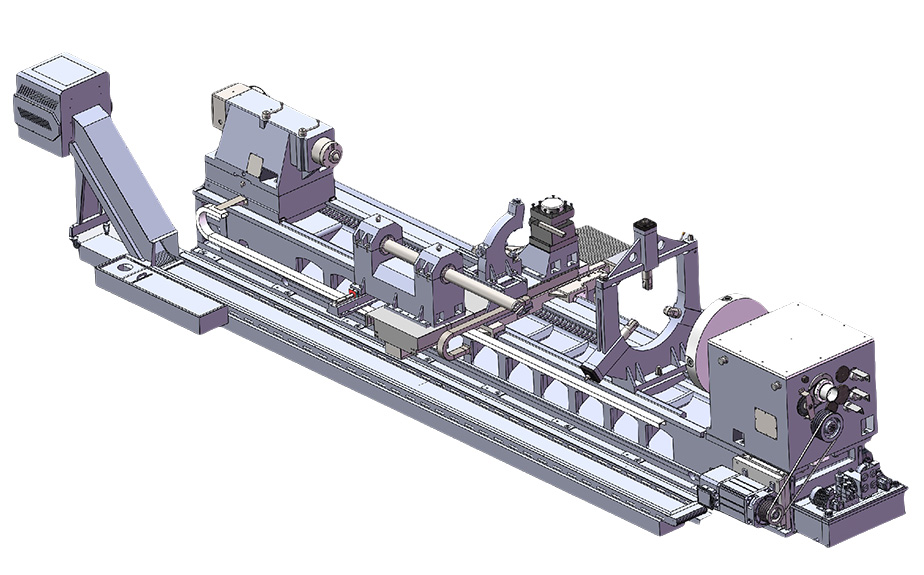

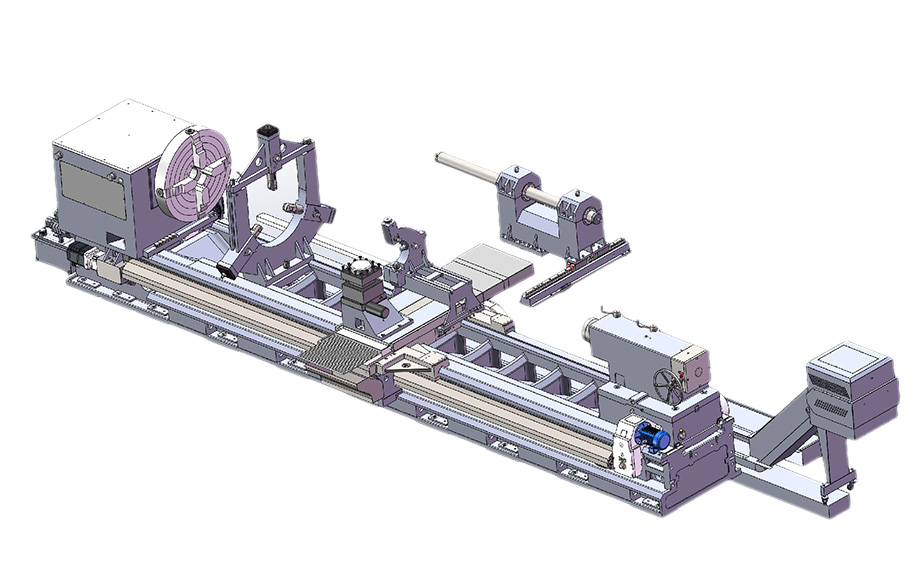

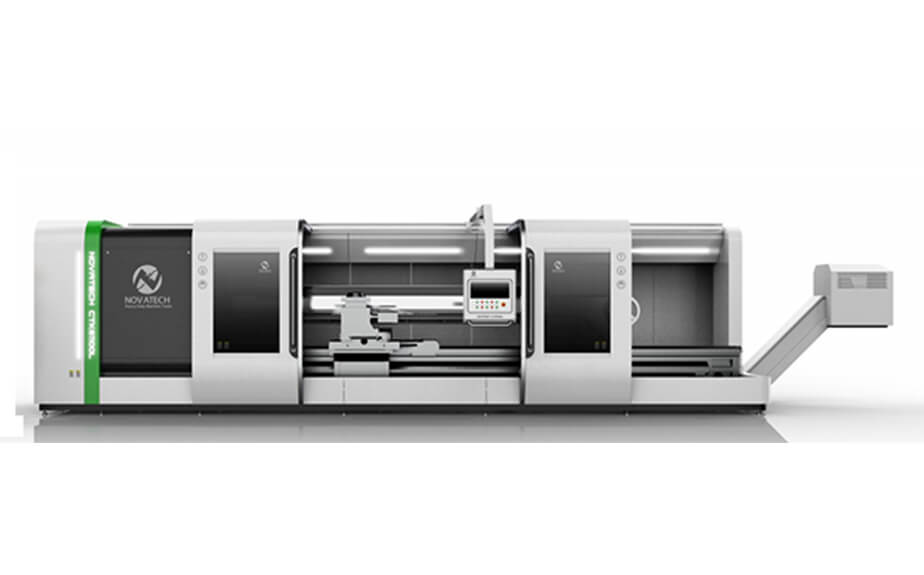

CTK611- M series machine are largeCNC horizontal flat bed lathes, CNC controller could be SIEMENS、 FANUC or other controller system, AC servo motor control.

The main drive for turning is automatical four-speed stepless speed change, AC spindle motor is applicable and two linkage control axes are used. If the the Z-axis and X-axis of the machine with a center distance of 1-5M ,we will adopt ball screw pair and AC servo motor to realize longitudinal and lateral movement;

While the Z-axis and X axis of the machine with a center distance of more than 6M ,we adopts a rack and pinion and a grating ruler, and the X-axis adopts a ball screw pair Add AC servo motor to achieve longitudinal and lateral movement, which will be with good positioning and repeat positioning accuracy.

The main components and structure of the machine are optimized and designed, and the stability of the whole machine is excellent.

Applicable to many industrial,such as energy, chemical industry, light industry, electromechanical, paper-making, automobile industry and other industries.

The large CNC horizontal lathe has characteristics of high precision, high power, high rigidity and high degree of automation. It is suitable for processing shaft, sleeve and disc parts. Such as turning inner and outer cylindrical surfaces, conical surfaces, arc surfaces, end surfaces, grooving, chamfering, threading, etc., the process has strong adaptability, high processing efficiency, simple operation, and comprehensive functions, which can reduce the need for skilled workers. requirements, it is an ideal machining equipment.

Notice:boring,milling,grinding,drilling functions are optional

Product Parameters:

Item		Machine model
Item		CTK61125M/40M	CTK61160M	CTK61180M/200M
CNC Turning and boring function Parts		Optional; After adding this functional part, deep hole boring machine processing and deep hole turning processing can be realized.
CNC Turning and milling function Parts		Optional; After adding this functional part, drilling and simple milling can be realized.
CNC Turning and grinding function Parts		Optional; After adding this functional part, the abrasive belt grinding of the outer circle can be realized.
Chuck	Standard	Φ1250mm	Φ1250mm	Φ1600mm
	Special ordered Parts	Φ1400 Φ1600 Φ1800mm
Center Frame	Standard	Φ70-480mm		Φ400-700mm
	Special ordered Parts	Φ400-700mm		Φ120-480mm
Turret	Standard	LDB4-C61125
	Special ordered Parts	Optional according to user requirements
Roller	Standard	No, special order is available

Item	Machine model
	CTK61125M	CTK61140M	CTK61160M	CTK61180M	CTK61200M
Max. loading capacity of two centers	10T/15T
Machine bed width	1100mm
Max.swing diameter over bed	1290mm	1440mm	1640mm	1840mm	2040mm
Max.swing diameter over turret	900mm	1050mm	1250mm	1450mm	1650mm
Max.workpiece Length	1000-16000mm
Headstock Parameters
Spindle front bearing diameter	200mm			220mm
Spindle bore diameter	Φ130mm
Spindle taper	Metric 140#
Spindle speed series	Hydraulic four gear, stepless speed regulation within gear
Spindle rotary speed range	5-500r/Min
Main motor power	37kW
Infeed system parameters
SIEMENS CNC control system
Longitudinal servo motor torque	36N.M
Transverse servo motor torque	20N.M
FANUC CNC system
Longitudinal servo motor torque	40N.M
Transverse servo motor torque	22N.M
Cutter bar cross section	40×40
Turret workstation quantity	Vertical type 4 station
Cutter disc Repeated positioning accuracy	0.01mm
Longitudinal Rapid feed rate	4000mm/Min
Transverse Rapid feed rate	4000mm/Min
Longitudinal feed speed	1-2000mm/Min
Transverse Infeed speed	1-2000mm/Min
Tailstock parameters
Tailstock sleeve diameter	260mm
Tailstock sleeve taper	Morse 80#
Tailstock sleeve stroke	300mm

There are many types of optional accessories for machine tools, such as hydraulic center frame, boring tool holder, power turret, tool arm, online detection, grating ruler, tailstock chuck, hydraulic chuck, workpiece support roller, C-axis spindle indexing, etc. Welcome users with needs to make requests before ordering machine tools, and we will provide you with the best solution.
